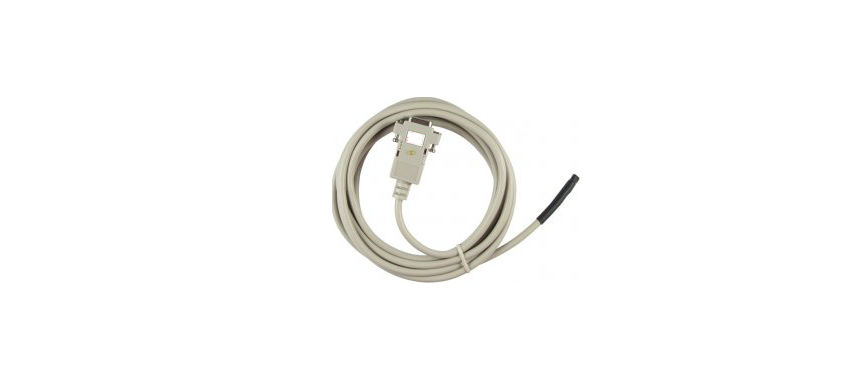

Digital Temperature Sensor (WITH RS232 SERIAL PORT)

The digital temperature sensor makes the easy measurement of temperature possible and allows transmission of the measured data in real-time. The data are transmitted in a simple ASCII protocol, within which the temperature values are given directly in degrees Celsius (°C). The sensor is connected to a GPS Tracker via a standard RS232 serial port.

  • Sensor Interface : RS232
  • Sensor Probe Protection : IP66 waterproof
  • Resolution : 0.1 degree C
  • Measuring Scope: -20 to 80 degree C
  • Sampling Cycle : Every 2 seconds
  • Sensor Size : Dia. 6 mm Length: 50 mm
  • Cable Length : Typical 3 meters, up to 10 meters
  • Extended Length : Up to 50 meters with RS422 adaptors
  • Working Power Input : 12V DC, max 150mA
